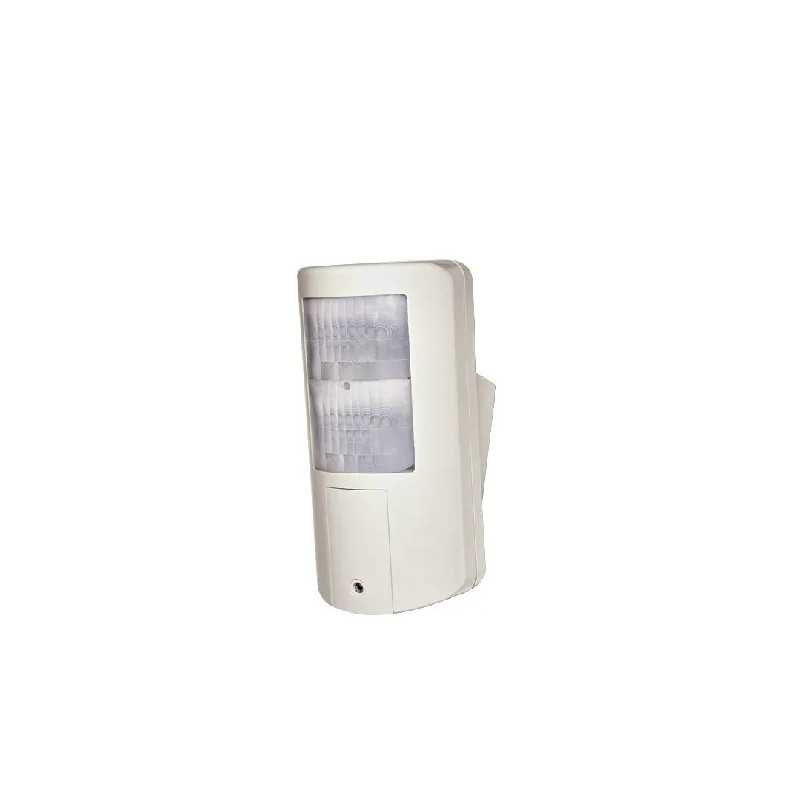

The Beyond DT Wired Outdoor Detector is a great addition to our hardwired Mosquito systems.  The dual technology means that there are minimal false alarms and can even recognise the sway of a tree. This detector pairs great with a VUpoint camera to give you outstanding alarm verification and is included in our Front Door Package.

KEY FEATURES

TRIGGER CONNECTION (WITH FUNCTION CHIP #2 FITTED)

If you wish to use a PIR to trigger the activation / deactivation of the Mosquito, the PIR must be connected to the ‘Trigger Input’ block located in the top right corner of the block. Connect the switching wires from the PIR to the ‘TRG -’ & ‘TRG +’ terminals. Connect the power wires from the PIR to the ‘12v +’ & ‘12v -’ terminals located on the left side of the ‘Trigger Block’.

The length of the time the Mosquito runs for each time movement.

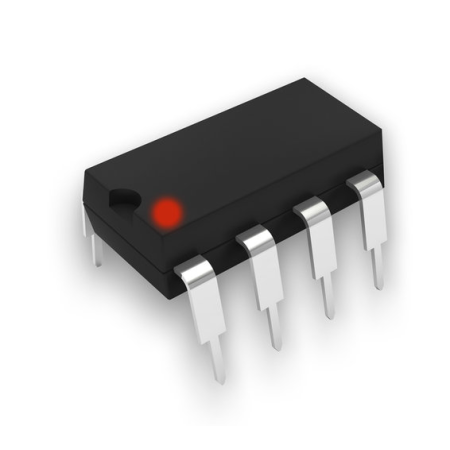

RED/BLACK Chip - If your Mosquito has a RED/BLACK chip, the unit will sound for 20 minutes when powered up and then shut down automatically and wait to be re-triggered.

This chip is generally installed in units that will be deployed in residential areas to ensure that the Mosquito is not left on for long periods of time for no real reason.

This chip is also required if the Mosquito is to be triggered by a motion sensor.

DIPSWITCH #1.

This is ONLY used when a PIR (movement sensor)  is being used to activate the Mosquito.

If you are NOT using a PIR on the Mosquito, this switch MUST be in the ‘OFF’ position.

If you are using a PIR to trigger the Mosquito, function chip #2 MUST be fitted.

Setting this DIP switch to the ‘ON’ setting will allow the Mosquito to run for 5 minutes each time the PIR detects movement. If this DIP switch is set to ‘OFF’ the Mosquito will run for 1 minute each time the PIR detects movement.
